Vivitek DU8190Z WUXGA Large Venue Laser Projector with 10,000 Lumens - Lens Not Included

Item Number: Vivitek-DU8190Z-BK
Lens Not Included
Projector Resolution:
Product Status:
Leaves Warehouse within 2-3 Weeks
Projector Type:
Optional Lens
Light Source:
Contrast Ratio:
10,000:1 (full on/off)
Aspect Ratio:
16:10 [WUXGA]
3D Support:

Price: $18,300.00
Leaves Warehouse within 2-3 Weeks
    Vivitek-DU8190Z-BK" data-price="18300.00" data-currency="USD" data-name="Vivitek DU8190Z WUXGA Large Venue Laser Projector with 10,000 Lumens - Lens Not Included" data-url="/vivitek-du8190z-wuxga-large-venue-laser-projector-with-10-000-lumens-lens-not-included.html" data-image-url="/shared/images/products/vivitek/DU8190Z-BK.png" data-description="##ITEMDESCRIPTION##">
    Large Venue, House of Worship & Professional Installation
    Laser-Powered Brightness, Clarity, and Reliability for Large Venues

    The DU8190Z is class leading in the next generation of advanced projection technology — LASER — at 10,000 ANSI lumens* bright. Built lamp-free, it provides a low cost of ownership, with minimal maintenance, and gives a stable, high-quality projection for up to 20,000 hours. A sealed optical engine and filter-less design provides optimal performance, making it an ideal solution for large venues. With impressively vivid colors, the DU8190Z offers the most immersive big-screen experience available in digital projection.Widely regarded as the future of professional and consumer projection technology, laser projectors possess numerous advantages over traditional lamp-based systems. From enhanced brightness to minimal costs of ownership, laser projectors have quickly become the optimal projection choice for a diverse range of applications.

    Lamp-based Projector Laser Projector

    From the first time they power on to their final use before being replaced, high intensity discharge lamps (central to lamp-based projectors) steadily lose fifty percent of their initial brightness capability. While this degradation is an accepted aspect of lamp-based systems, brightness decay affects laser projectors to a much lesser degree. Over the course of their 20,000 hour lifetimes, blue laser diodes only diminish by twenty percent, resulting in greater brightness over dramatically longer periods of use. Furthermore, lasers can achieve significantly greater peak brightness levels than HD lamps, often producing twice as many lumens.

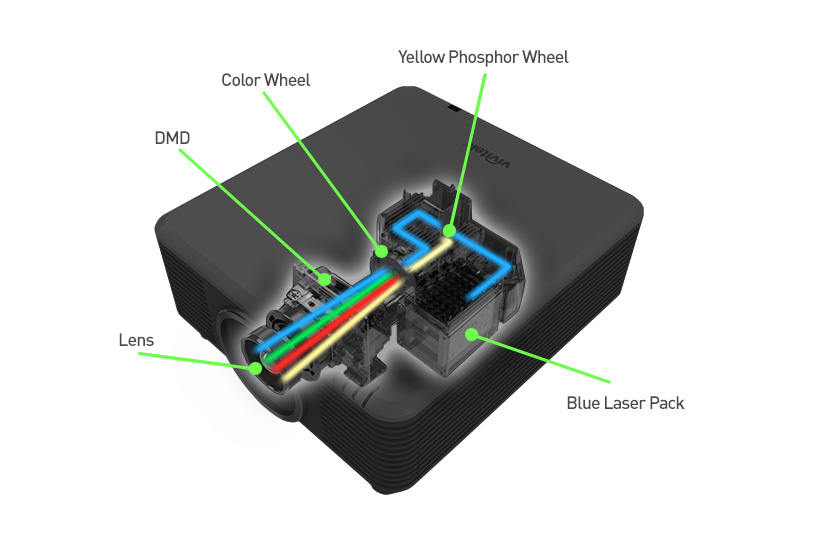

    To generate a full spectrum of color, the 3 primary colors have to be created from a single color laser – in this case, a blue laser. This is achieved by using a cluster of blue lasers that shine onto a spinning yellow phosphor wheel that also incorporates a clear segment that allows the blue light from the lasers to shine through (this is the blue primary color). The generated yellow light then passes through a color wheel that in turn generates red and green – the other primary colors. After passing through a diffusion window, the colored light is presented to the Digital Micro Mirror chip, the imaging device. The DMD switches at a very high rate and presents the on, colored pixels to the optical lens system for display on the screen or projected surface.

    A simple, precise technology that is efficient and generates sharp, and clearly defined images, as only a single chip is required.


    Perfect for corporate, education, retail, and government environments, where reliability and low cost of ownership are critical, the lamp-less operation of laser-based projectors grants up to 20,000 hours of sharp, maintenance-free operation. Featuring an instantaneous power-on and off, a sealed optical engine, and an airflow-optimized system layout, the DU8190Z boasts the industry-leading reliability and durability synonymous with Vivitek.


    The Vivitek DU8190Z provides the connections necessary for a large venue and many other enviornments: HDMI input, 3G-SDI, HDBaseT, BNC for YPbPr/RGBHV, VGA input for PC and Laptop, S-Video, Composite video, IR input, Rs232c and 12V Trigger for screen automation.

    LAN support compatibility of the following applications:

    • LAN Control — Cestron Roomview, Connected
    • LAN Control — Crestron eControl
    • LAN Control to RS232 (RS232 by Telnet)

    • Laser phosphor projection engine incorporates a laser design that’s long lasting(20,000 hrs)and environmentally friendly
    • 10,000 ANSI lumens*, with a dynamic 10,000:1 contrast ratio, provide amazing image quality that's stable over time
    • Built-in ACS (auto color sensor) for color and brightness consistency
    • Built-in MPS (multi projector system) hardware for edge blending, flexible geometry and warping functionality
    • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and projector position flexibility together with memory system
    • Picture-in-Picture (PIP) to simultaneously project images/videos from two different sources
    • Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC), VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™ (content over CAT5e/6 cable)
    • Full 3D compatibility with DLP® Link™ and HDMI 1.4 interface
    • Flexible mounting positioning - 360 degrees in any axis for ease of installation
    • Network connectivity for remote projector management - control and status. Ready for integration and system administration via RJ45
    • Eight interchangeable lens options for flexible installation and optimized brightness
    • Sealed optical engine and filter-less design improves performance with minimal service maintenance
    • Instant On/Off

    Display TypeSingle Chip 0.67" DLP Technology by TI
    Brightness10,000 ANSI Lumens
    Native ResolutionWUXGA (1920 x 1200)
    Maximum ResolutionWUXGA (1920 x 1200) at 60Hz (Reduced Blanking)
    Contrast Ratio10,000:1
    Light Engine Life and TypeUp to 20,000 hours, Laser Phosphor Light Engine
    Image Size (Diagonal)*40” - 500”, 1 - 12.7 m
    Aspect Ratio16:10 format
    OffsetMotorized Lens Shift, Horizontal and Vertical
    Keystone CorrectionHorizontal ± 60°, Vertical ± 40°
    Horizontal Frequency15 - 108 Hz
    Vertical Scan Rate50 - 85 Hz
    Edge BlendingYes (Built-in)
    WarpingYes (Built-in)
    3D FunctionalityYes; DLP® Link™, HDMI v1.4 (Blu-ray, Side by Side, Frame Packing, Top and Bottom)
    Lens Shift Range**Vertical: 0-50%, Horizontal: ±10%
    Computer CompatibilityVGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA at 60 Hz, Max
    Video CompatibilitySDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p) NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L), WUXGA at 60 Hz Max
    I/O Connection PortsHDMI v1.4a (x2) DVI-D, Component (5 BNC), VGA-In, 3G-SDI-In/Out, RS-232, VGA-Out, 3D-Sync In/Out, 12v Trigger, Wired Remote, HDBaseT™/LAN (Shared)
    Projection MethodFlexible 360°; Image Correction for Table Top, Ceiling Mount
    Security SolutionsKensington® Security Slot, Security Bar, Keypad Lock, Anti-Theft Lens Screw
    Dimensions (WxDxH)19.7” x 22.8” x 8.1”, 500 x 580 x 205 mm
    Weight28 kg (61.7 lbs)
    Cabinet ColorsBlack
    Noise Level40 dB (Normal Mode)
    Power SupplyAC 100-240 V, 50/60 Hz
    Power ConsumptionFull Power: 1320 Watts, Standby Power < 6W
    Standard AccessoriesInterchangeable Lens (8), AC Power Cord, Remote, Lens Cap, Anti-Theft Lens Screw, Documentation Kit
    Optional AccessoriesInterchangeable Lens Options (x8), NovoPRO
